- Place of Origin: China
- Brand Name: Longhai Global automation
- Model Number: LH1501
- Weight: 120.000 kg

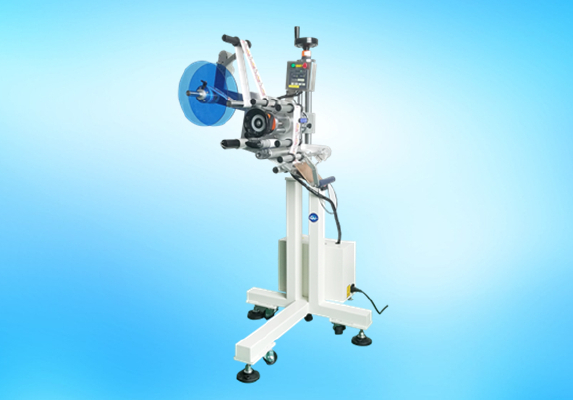

LH1501 stand labeling applicator is designed to synchronize with production line. It is convenient to apply labels on the surface of flat, lateral,curved, slightly rugged products.
Features:
● Installed flexibly, synchronous connection with production line.
● Powerful performance：labeling different sizes of bottles.
● XY axes for height and angle adjustment.
● High precision and stability：PLC control system, stepping motor drives, U-type sensor detects.
● Colorful touch screen, English display, convenient operating interface.
● Labeling counter, record production quantity.
● Able to store 50 kinds of labeling data, easy to shift different products, no need to re-set.
● Stainless steel aluminum alloy construction, easy maintenance, durable life.
● Option parts：bar code, date code printer.
● Wide use：labeling on metal, glass, plastic object etc. on metal, glass, plastic object etc.
Specification:
● Labeling speed：60~150pcs/minute
● Labeling accuracy：±1mm
● Power supply： 220V/50Hz, 110V/60Hz
● Power consumption：300W for stepping motor, 600W for induction motor
● Roll label size：from 8" to 12" in diameter on a 3" core
● Labeler size：(H)1000mm*(W)700mm*(H)1450mm
● Net weight：120kgs
- Place of Origin: China
- Brand Name: Longhai Global automation
- Model Number: LH1501
- Weight: 120.000 kg
.Specification
Labeling accuracy | ±1mm |
Labeling speed | 60~200Pcs/Min |
Applicable object size | D.:φ25mm ~ φ110mm ； H.:25mm~350mm |
Label size | (L)15mm~350mm ； (W)10mm~150mm |
Label Reel size | OD.: φ280mm ； ID.:φ76mm |
Air pressure | 0.4-0.7Mpa |
Power supply | 220V/50Hz , 110V/60Hz |
Machine of size | (L)850*(W)415*(H)800mm |
Total Weight | 185kg |
Power consumption | 850W for stepping motor, 1150W for induction motor |
